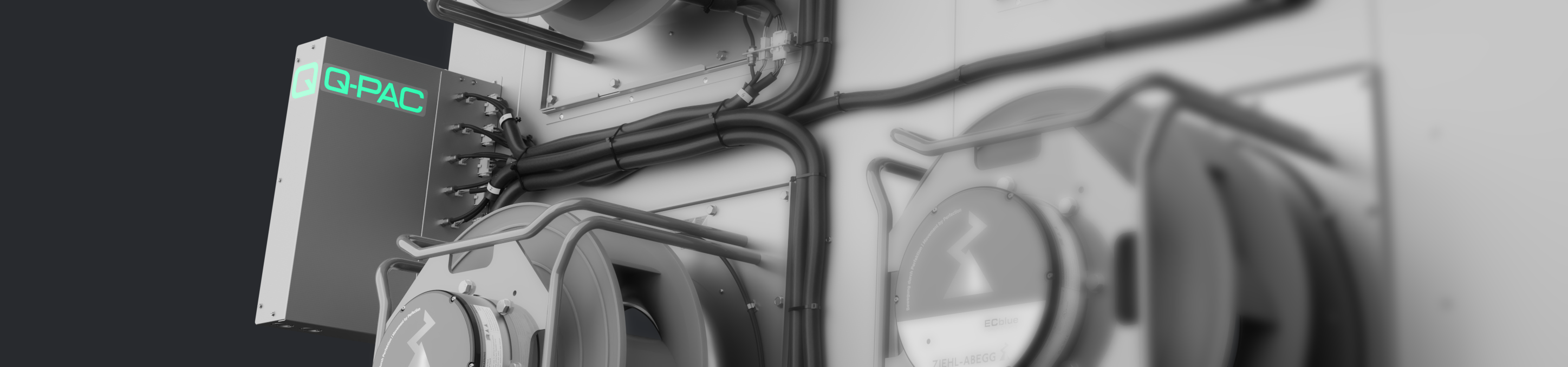

The Q-PAC Fan Controller: Driving Control & Automation through a Single Connection Point
At the core of every Q-PAC Multimotor Plenum Fan (MPF) is a highly engineered Fan Controller — a patented device that transforms what would otherwise be a complex fan array into a single, intuitive piece of equipment. In this article, we explore what the Fan Controller is, how it works, and why its unique circuit board architecture is the key element that makes a Q-PAC Fan simpler to install, easier to control, and more reliable to operate than anything else on the market.
What Is the Q-PAC Fan Controller?
The Fan Controller is the centralized power and control hub of the Q-PAC MPF. It bridges the gap between the complexity of a traditional fan array and the simplicity of a single-motor fan.
Once the MPF is assembled, the Fan Controller becomes the single point of connection for both power and control. Installers land one three-phase power feed and one control signal inside the Fan Controller — exactly as they would with a conventional VFD (variable frequency drive). From the perspective of the building automation system or control panel, the MPF behaves as one device, not a collection of individually managed motors.
This abstraction is intentional. It’s what allows the MPF to truly be a fan — not a fan array.
The Q-PAC Fan Controller Solves Real Commercial HVAC Challenges through Simplification
The Q-PAC Fan Controller did not appear overnight. Its development was a deliberate response to real-world installation, operation, and maintenance challenges observed in the field.
Step One: Simplifying Wiring for HVAC Fan Installation
Early on, Q-PAC identified a fundamental pain point: installers were required to make too many wiring terminations. The initial goal was straightforward: create a single, predictable location for power and control connections. The earliest versions were essentially custom-made junction boxes, but even this step dramatically reduced installation time and complexity. Although this was a major step forward, landing every wire individually was still time-consuming. The solution was pluggable wiring, which led to the creation of the Quick Connect Box (QCB). With mating plugs and cable harnesses, motors could be replaced quickly and safely without rewiring.
Step Two: Making Service Faster for Building Owners
As the product matured, serviceability became the next priority. Having plugs inside the QCB was nice, but hardwired connections at each motor slowed motor replacement and increased downtime. This was addressed through the introduction of fan harnesses and motor ledges.
Step Three: Protecting Uptime from Within the Fan Controller
Even with improved serviceability, a single motor failure could still impact the entire system. To address this, Q-PAC introduced individual branch circuit protection at the Fan Controller. If one motor fails, the rest of the fan continues operating at reduced capacity — a critical feature for commercial HVAC applications where uptime matters.
The Control Problem in Commercial Air Handler Fans
Traditional fan arrays rely on networked motor control — often using Modbus — where each motor must be individually addressed by a programmable logic controller (PLC). This architecture creates several issues:
Each motor requires unique configuration
Replacement motors must be re-addressed
Specialized tools and expertise are needed for maintenance
Motors are no longer interchangeable
For building operators and contractors, this added unnecessary complexity.
Q-PAC Responded to the Need from a Shift from Fan Array to Fan
The breakthrough came with a shift in perspective.
Instead of treating the system as a fan array controlled externally, Q-PAC asked a different question: What if the intelligence lived inside the fan?
To make this possible, Q-PAC eliminated Modbus addressing altogether and introduced a new printed circuit board design. Early versions of this board performed basic motor selection, sequentially monitoring motors in a simple clock-like pattern. While effective, this approach was limited, proprietary, and not programmable.
More importantly, this approach forced customers to use a proprietary Q-PAC control panel — even when their air handling units already included sophisticated commercial HVAC control panels managing heating, cooling, humidification, sensors, and safety.
The answer was clear: the fan needed to be controller-independent.
The Q-PAC Fan Controller Enables Direct Control & Automation for Your Air Handler Fan
The patented Q-PAC Fan Controller is a fully integrated, microcontroller-based device that embeds intelligence directly into the fan.
It allows the MPF to be commanded by any third-party controller or building automation system using standard control signals. No proprietary PLC is required. No addressing is needed. The Fan Controller presents itself like a single EC motor, or a combination VFD/AC motor — regardless of how many motorized impellers it manages.
This is what makes the MPF fundamentally different from a fan array.
The Fan Controller is the Future of Power and Control Architecture
Power Distribution
Three-phase power enters the Fan Controller at a single central connection and is distributed internally via a bus bar. Power then passes through individual fuses to pluggable connectors that feed each motorized impeller.
If a motor fails, its fuse isolates the fault, allowing the remaining motors to continue running. This architecture improves reliability while maintaining simplicity.
Control Distribution
The Fan Controller distributes control signals to each plug fan through dedicated cable harnesses. Each harness carries:
A 0–10V speed modulation signal
A common reference
A motor status relay (normally closed when healthy)
From the outside, the system requires only one control signal — making integration with control and automation systems straightforward.
Failsafe Operation
The Fan Controller is designed with reliability in mind. By default, the speed signal bypasses the microcontroller through a normally closed relay. This means the fan can operate even if the main control board is not energized.
When firmware is active, the microcontroller takes control — adding intelligence without sacrificing fail-safe operation.
Printed Circuit Boards are the Heart of the FanSystem for Well-Engineered Communication
Each Fan Controller includes:
One main control board, which controls and communicates with the MPF
Motor interface boards, one for each plug fan
The main control board handles communication with external controllers, firmware updates, memory storage, and system-level logic. Control signals are landed here.
Motor interface boards command individual motors and monitor inlet cone pressure to determine airflow — enabling smart, responsive operation without external complexity.
Developing this architecture required deep expertise in control systems, power electronics, and HVAC applications. The result is a commercial HVAC control solution that is both highly engineered and remarkably easy to use.
The Q-PAC Fan Controller Diminishes Complexity for all HVAC Roles
Traditional fan arrays are complex by nature. They require multiple wiring runs, individual motor control, and specialized configuration. The Q-PAC Fan Controller eliminates that complexity by design.
To the installer, it wires as a single fan. To the controls contractor, it integrates as a single fan. To the building operator, it behaves like a single fan.
That’s not marketing language. It’s an architectural decision embedded directly into the Fan Controller and its circuit boards.
The Q-PAC Fan Gives the HVAC Industry a Simpler Way Forward
By treating the MPF as a single component rather than a collection of parts, Q-PAC has redefined what a high-performance plenum fan can be. The Fan Controller is the reason this works — and why Q-PAC fans are simpler to install, easier to control, and require less maintenance compared to traditional ways of moving air.
Want to Learn More?
If you’re interested in how Q-PAC’s Fan Controller can simplify your next project — or how it integrates with your existing control and automation strategy.
